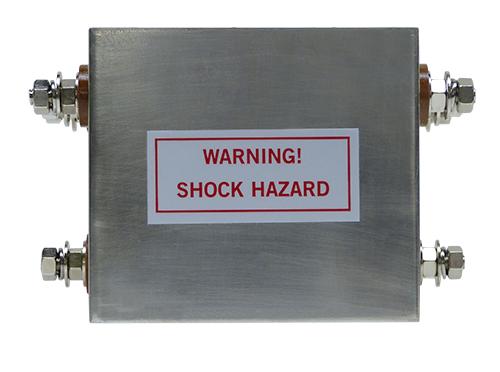

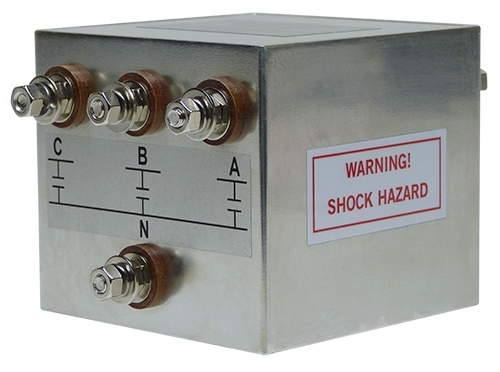

Type 9146-1 3-Phase 'Wye' Capacitor, 10 µF

spacer


  DESCRIPTION top of page button
This handy device contains three 10 µF capacitors in a 'Wye' configuration. Provides 10 µF capacitance from each line to neutral.

  SPECIFICATIONS top of page button
spacer
Capacitance: 3 x 10 µF ± 10% @ 25° C
Voltage rating: 270 VAC at 60 Hz, 135 VAC at 400 Hz
Current rating: 100 A (limited by 1/4-28 threaded terminals)
Temperature: -55° C to 100° C (125° C with 50% voltage derating)
Dissipation factor: <1% @ 25° C
Dielectric strength: Twice rated voltage @ 25° C
Insulation resistance: At rated voltage or less for a period of two minutes, the insulation resistance will exceed 2500 MΩ @ 25° C line to neutral. However, insulation resistance in excess of 500 kΩ cannot be measured due to the bleeder resistors built into the units.
Bleeder resistor: Line to neutral internal bleeder resistors of 500 kΩ included
Life test: Will withstand the application of 600 VDC @ 85° C for 250 hours
Terminals: 1/4-28 threaded feed-thru studs
Dimensions: 4.50" wide x 4.00" high x 4.50" deep (11.43 cm x 10.16 cm x 11.43 cm)
Dimensions with connectors: 6.50" wide x 4.00" high x 4.50" deep (16.51 cm x 10.16 cm x 11.43 cm)
Weight: 2.73 pounds (1.24 kg)
Boxed weight (approx.): 4 pounds (1.81 kg)
